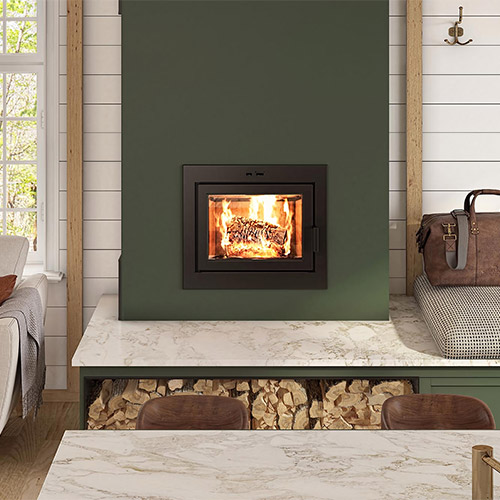

The Elegance® 30 Built-in Wood Burning Fireplace is the smallest on the Elegance® Series, designed for a warm presence in compact spaces! Boasting up to 60,000 BTU capacity, it is EPA certified for very low emissions and high efficiencies. Lined with natural soapstone slabs, it provides increased efficiencies, beautiful firebox look and great radiant heat. Paired with a patented automatic air control system, you will enjoy extended burn time and consistent heat with each load. It is offered in two configurations, clean contemporary facade or louvered. If you are looking for a powerful and efficient compact fireplace, the Elegance® 30 will suit and charm you!
Power: | Cordwood 60,000 BTU |
EPA 19,821 BTU |
Burn Time 4 to 8 hours |
|
---|---|---|---|---|
Efficiency: | G/HR 1,2 g/hr |
Optimal % 75% |
LHV NA |
|

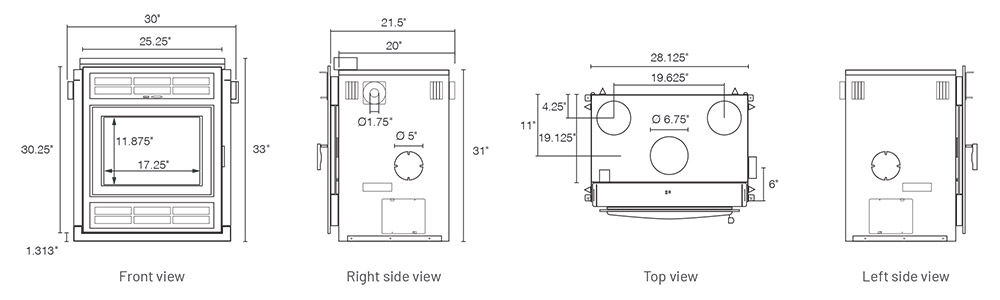

Dimensions / Weight: | Overall 30" W x 22" D x 33" H |
Min. Wall Opening 30" W x 21" D x 33" H |
Weight 280 lbs |
|
Glass: | Material Ceramic |
Dimensions 17 1⁄4" W x 11 7⁄8" H |
Surface Area 204 sq. in. |
|
Log Length: | Max. Log Length Logs up to 18" Recommended 16" |
|||
Firebox: | Cu. Ft. 1.79 Cu. Ft. |
Int. Dimensions 18" W x 11 1⁄8" D x 13 1⁄4" H |
Lining Soapstone |
|
Mantel Shelf Clearances: | Combustible Mantel Shelf 5-inch Shelf: 40 3⁄4" H |
Ambiance® Non-Combustible Mantels No Clearance required |
||
Venting: | TYPE Class A |
Diameter 6" |
Min. / Max. Height 15 / 35 Feet |
Brands All |
Air Circulation: | Included Blowers Variable speed / 2 x 165 CFM |
Optional Gravity Kit Required For Clean Face |
Optional Forced Air Kits Up to 3, Heat Activated, 255 CFM |
Optional Fresh Air Kit With Any Configuration |
